Data Strings Intro

All string must end in an ASCII 13 (CR - Carriage Return) or ASCII 10 (LF - Linefeed).

Analog Data

Analog data are ASCII text strings of a single or comma-separated values such as:
10
10, 20, 30
Data is accessible as values as ain0 to ain99 and can be access with [ain0] to [ain99].

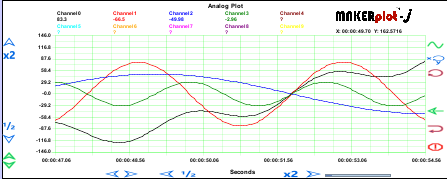

Analog data will be plotted by default in analog plots.

Please see Analog Data for more information.

Digital Data

Digital Data are ASCII text strings of binary values starting with %
%0
%100100100
Data is accessible as values of din0 to din99 and can be accessed with [din0] to [din99].

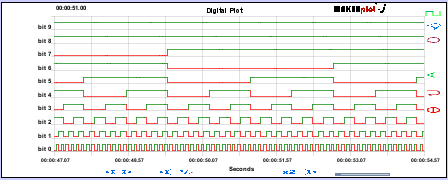

Digital Data will be plotted by default in digital plots.

Please see Digital Data for more information.

Message Data

Message data are ASCII text strings which do not start with a numeric value (Analog Data) or the characters of % (digital data), ! (Control and drawing instructions), @ (constant drawing instructions) or ? (shorthand for !debug).

For example:
The pump is on.

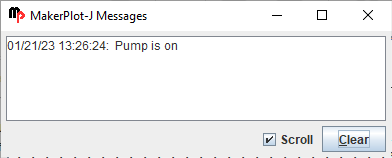

Message data will be listed in the Message Window.

Messages containing commas will be parsed and its comma-separated portions will be parsed into str0 to str99 for access as [str0] to [str99].

Please see Message Data for more information.
