Interface Editor

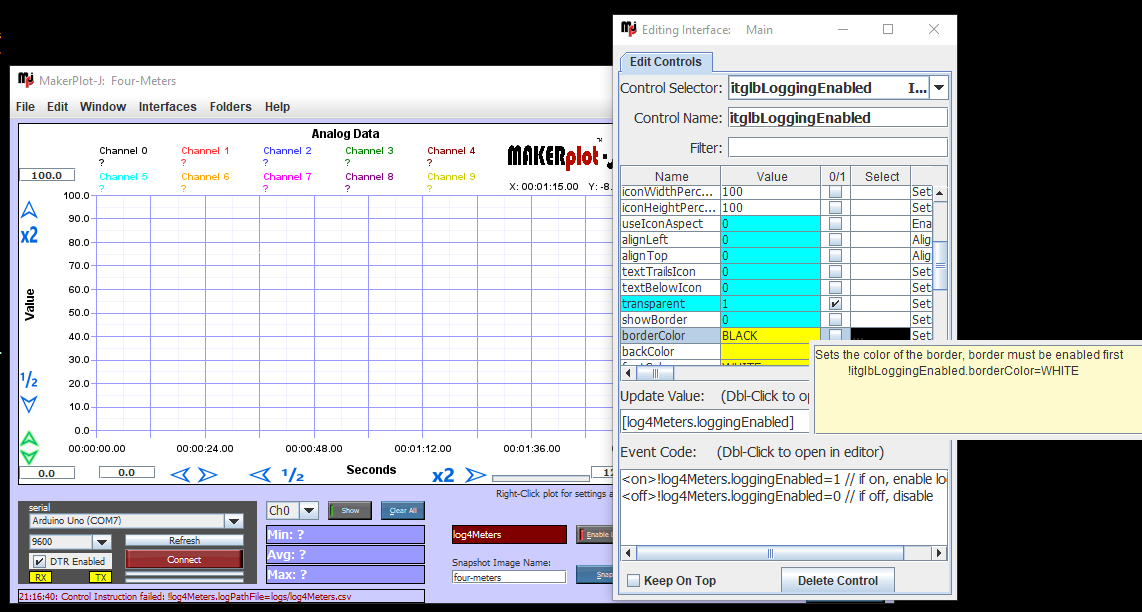

The Interface Editor is where Properties, Update Values and Event Code for Interfaces and Controls can be edited.

Double-Clicking the Event Code text area will open the Code Editor where code can written with contextual help to simplify coding and provide help.

Placing your mouse pointer over a control or interface (when that interface has focus) and pressing F3 will open the Interface Editor for that object. If in Edit Mode (F9), clicking an interface or control will open it to that object.

Selecting Controls and Filtering Properties

At the top the Interface Editor you may select a control or interface, change its name, and Filter the property list.

Changing Properties

•In the Property List, items highlighted in blue are boolean properties and checking the 0/1 checkbox will change its state.

•Items with color show the color and may be adjust by clicking the color in the Select column.

•Media Files are white and have ... in the select column. Clicking the ... will open a file selector window.

•All other properties may be changed by typing in a value and pressing Enter to lock it in.

•Right-Clicking a property will open a help window to show usage of that property.

Update Value

The Update Value will cause the control's value to update to the selected value, such as [ain0] or { ([ain0] + [ain1]/2 }. The default property, such as the text of a textbox or the value of meter, will be updated unless a specific property is set, such as color: .backColor=[ain0]

Double-clicking this textbox will open the Code Editor for a single line of code to be entered for the textbox with contextual help.

See Update Values for more information.

Event Code
Double-Clicking the Event Code text area will open the Code Editor where code can be written with contextual help to simplify coding and provide help. Once code is entered, it must lose focus before that code is applied. See Event Code for more information.

Other
The Interface Editor may be selected to stay on top or to delete the control selected.
