Instructions

The Analog Plot has many instructions for . The entire list is best viewed in the the Debug/CLI Wndow (F4), Code Editor or the Controls Viewer (F6). In many views, selecting and right-clicking a property will open its help.

An overview will be discussed here. A value cannot be set directly, only read.

An instruction may be executed by using

!controlName.instruction parameters

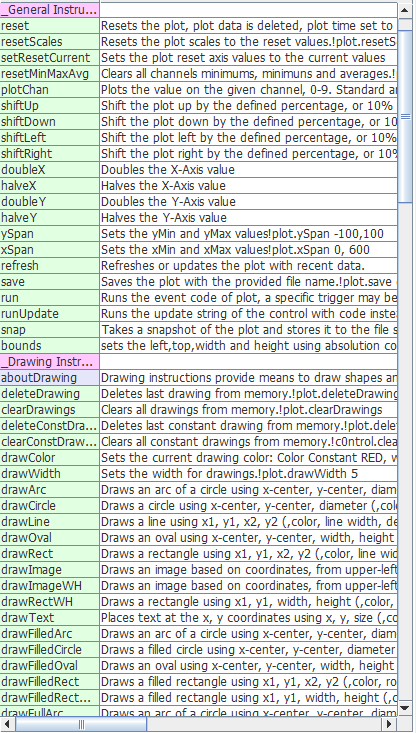

The Analog Plot's instructions are broken down into two categories: General and Drawing

Most General Instructions are used to control the axis of the plot, a few of note include:


•reset - Resets the plot deleting all current data
!plot.reset


•plotChan channel, value - Allows manually plotting data on a given channel
!plot.plotChan 5, 30


•save filename - saves the plot data with the given filename. See Saving Plots


•snap filename.png - saves an image of the plot with name provided.
!plot.snap myplot_[systemDateTimeDash].png


The drawing instructions are discussed in Analog Plot Drawings.
