Image Button

General
The Momentary Image Button (or just Image Button) control is a clickable control like standard GUI buttons. Clicking it will cause the Event Code to be ran, so for a button, the trigger event is a ‘click’. An Image Button may be assigned a hotKey, such a R for a button with text of Plot Reset- Note that the R will be underlined. This allows the ALT-R key combination to activate the button as well as clicking on it. If the hotKey value is part of the text, it will be underscored like the R below.

Unlike the standard Button, the Image Button is assigned images for the normal view (icon property), the mouse-over or hover image (iconHover property) and the pressed image (iconPressed property). These may come from the media directory of MakerPlotJ or any image file on the computer. If you wish to make your interface package portable, please see Portable Interface Packages.

The style of the control allows the text to be below the image (textBelowIcon property) or trailing the image (textTrailsIcon property). Note that the icon height and width percentage properties as well as the font color may need to be adjusted, or simply select a pre-made one from the palette.

Control Creation
Image Button controls may be placed on the main or children interfaces using the Controls Palette, use F2 to open. When placing, it will ask for the name of the control, ibtn is the recommended prefix for the control name, such as ibtnReset. It will also ask for the text for the control to have. Once done, click a location or draw to desired size. Like most controls, the font size will be based on the height of the control.

An image button may also be created using code, such as from the file save, the Debug/CLI window, the microcontroller sending the string or other controls.
 !makeImgButton Name, Left, Right (,Width, Height, Text, HotKey)     Parameters in () may be omitted.

If it is to be on a child interface:
 !interfaceName.makeImgButton Name, Left, Right (,Width, Height, Text, HotKey)     Parameters in () may be omitted.

Example:
 !makeImgButton ibtnReset, 20,20,25,5,Reset Plot,P

Once placed, it may be repositioned and resized by unlocking the interface’s controls, F9, and dragging/sizing it. It may be copied or deleted by placing your mouse pointer over it and using CTRL-C and CTRL-X, and pasted using CTRL-V.

Instructions:
 Instructions are used to inform the control to perform some operation. The Button control has no special instructions beyond the basic ones of all controls. See Instructions for more information on instructions.

Properties

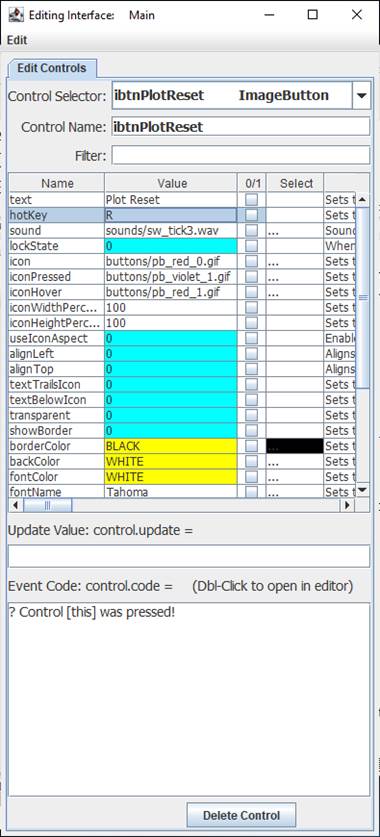

Properties are the look, ‘feel’, and other characteristics of a control or object. They may be viewed or set using the Debug/CLI or the Interface Editor. Placing the mouse pointer over a control and pressing F3 will open the Interface Editor. Here you may view all accessible properties of the image button control and modify them as desired. Please see the Interface Editor page for more information on the editor.

Properties may be set in code using:
 !controlName.property=someValue
 The default property, text, may be set with:
 !controlName=someValue

They may be read in code using:
 [controlName.property]
 The default property, text, may be read with:
 [controlName]

When used in its Event Code, [this] may be used in place of the controlName for reads and writes or [this.property]=value for writes.

As mentioned above, there are propertiesused to assign images for 'normal button state', 'mouse hover', and 'button press', as well as placing the text in relation to the images and sizing the images.

Update Value
An Update Value is used to update a property of the control when new analog, digital, or message data arrives. While the Button control does not have a strong need of an update value, it is still possible to use it. For example, placing [str0] in the update value box will update the text to read the first comma-separated value of an incoming message string such as:
 Power, Voltage, Current

It will update with each subsequent string received.

Event Code
For a button, the Event Code is of great importance as this is the code or instructions that will run when the image button is clicked. Please see Event Code for a full discussion on event code.

The use of !this.someCommand or !this.someProperty in the event code refers to the control that is running it, as does [this.someProperty] for readingm, or [this] for the control’s name, and [[this]] for the control’s default value. This allows controls to have the same generic code for unique purposes and reduce coding issues such as if the name is changes.

Double-Clicking the text area will open the Code Editor where, like the Debug/CLI, it can provide contextual help and suggestions. Please see the Code Editor page for more information.

The code for an image button control can be executed from other code in the interface or from the microcontroller using:
 !controlName.run or !controlName.

The image button will trigger its normal event code when clicked. The only named trigger event the control currently supports is <load>, which will run its code when the !runLoad instruction is issued, such on loading an interface, which goes to all control or !control.run <load> is used which will trigger the specific control.

Please see advanced topics on using event triggers and passing data to events.

Supported Event Triggers:
 A button click, no trigger identifier used.
 <load>  Runs code when !runLoad is issued, such as opening an interface file.

More Information:

There exist multiple means of getting information about specific control values, properties, instructions, and events. The Control Editor shown above has abbreviated descriptions in the right-hand column. Expand the window and column to see more at once.

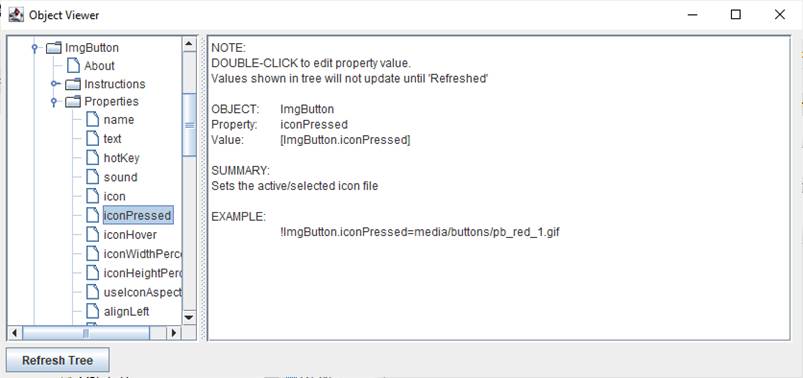

The Controls Viewer allows users to see detailed on controls. Open using F6 and expand out to find the information of interest including examples of use.

The Debug/CLI and Code Editor also provide contextual help. Please see those pages on using them for help.
