Spinner

General
The Spinner control allows the increasing or decreasing of an integer value. It may be used for values such as setpoint for control action. The interval property allows setting the interval by which its values is changed. Its value may be retrieved with [controlName] or [[this]] in its own code for setting some aspect of the interface.


Button Creation
Controls may be placed on the main or children interfaces using the Controls Palette, use F2 to open from the desired interface. When placing, it will ask for the name of the control, spn is the recommended prefix for the name, such as spnFlowRate. It will also ask for the text for the control to have. Once done, click a location or draw to desired size. Like most controls, the font size will be based on the height of the control.

A control may also be created using code, such as from a saved file, the Debug/CLI window, the microcontroller sending the string, or other controls.
 !makeSpinner Name, Left, Right (,Width, Height, Text, Value)     Parameters in () may be omitted.

If it is to be on a child interface:
 !interfaceName.makeSpinner Name, Left, Right (,Width, Height, Text, Value)     Parameters in () may be omitted.

Example:
 !makeSpinner spnFlowRate, 20,20,10,15,FlowRate,10

Once placed, it may be repositioned and resized by unlocking the interface’s controls, F9, and dragging/sizing it. It may be copied or deleted by placing your mouse pointer over it and using CTRL-C and CTRL-X, and pasted using CTRL-V.

While it only supports integers, the value may be divided in code, for values in tenths for example:
 ? { [spnFlowRate] / 10 }

Instructions:
Instructions are used to inform the control to perform some operation. The Spinner has only those common to all controls.

See Instructions for more information on instructions.

Properties

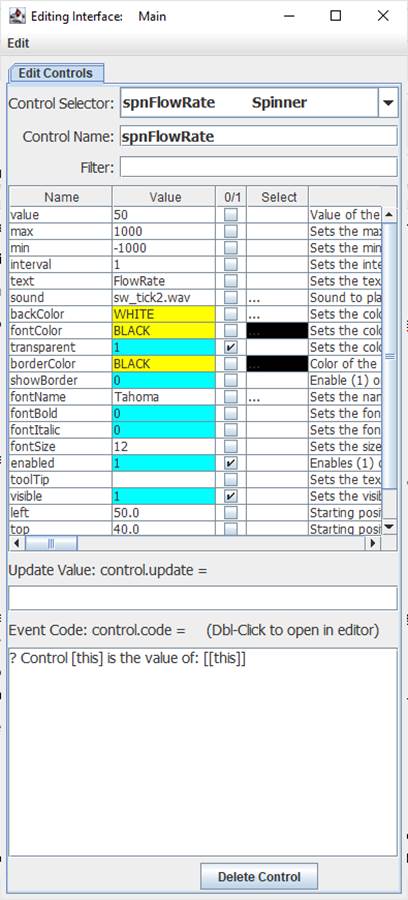

 Properties are the look, ‘feel’, and other characteristics of a control or object. They may be viewed or set using the Debug/CLI or the Interface Editor. Placing the mouse pointer over a control and pressing F3 will open the Interface Editor. Here you may view all accessible properties of the button control and modify them as desired. Please see the Interface Editor page for more information on the editor.

Properties may be set in code using:
 !controlName.property=someValue
 The default property, value, may be set with:
 !controlName=someValue

They may be read in code using:
 [controlName.property]
 The default property, value, may be read with:
 [controlName]

When used in its Event Code, [this] may be used in place of the controlName for reads and writes.

Ensure transparent is off when using the backColor.

This control has an interval property to set the increment by which it changes when clicked.

min and max are used to set the range of the control.

A possible use of spinners could be to use a second to set the interval of the spnFlowRate spinner. The second spinner’s code would be:
 !spnFlowRate.interval=[[this]]

Update Value
An Update Value is used to update a property of the control when new analog, digital or message data arrives and could be used to change the value, but this would be an uncommon use.  One possible use would be showing an actual value for its text, such as setting an update value to:
 .text=Flow: [ain0]

Event Code
When changed by either using the arrows or by entering a new value, the event code will trigger. Please see Event Code for a full discussion on event code.

The use of !this.someCommand or !this.someProperty in the event code refers to the control that is running it, as does [this.someProperty] or [this] for the control’s name and [[this]] for the control’s default value. This allows controls to have the same generic code for unique purposes and reduce coding issues such as if the name is changes.

Double-Clicking the Event Code text area will open the Code Editor where, like the Debug/CLI, it can provide contextual help and suggestions. Please see the Code Editor page for more information.

The code for a button control can be executed from other code in the interface using:
 !controlName.run

The control will trigger its normal event code when clicked. The only named trigger event the control current supports is <load>, which will run its code when the !runLoad instruction is issued which goes to all control or !control.run <load> is used which will trigger the specific control. Load can be used to set a certain value in the control when the interface is loaded or !runLoad issued.

Please see advanced topics on using event triggers and passing data to events.

Supported Event Triggers:
 Changing the value, no event trigger identifier used.
 <load>            Triggered when the !runLoad command is issued, such as when loading an interface.

More Information:

There exist multiple means of getting information about specific control values, properties, instructions, and events. The Control Editor shown above has abbreviated descriptions in the right-hand column. Expand the window and column to see more at one.

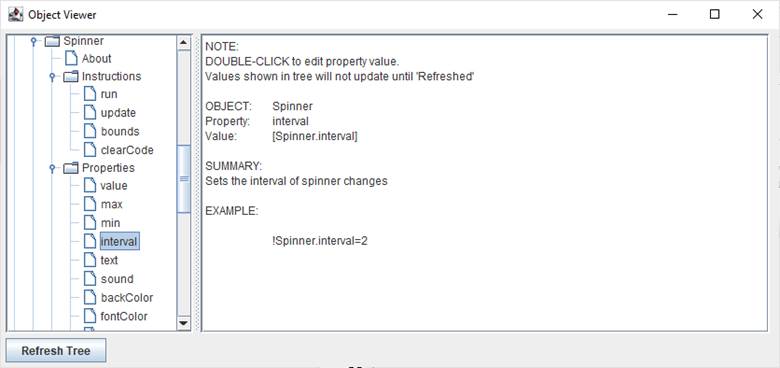

The Controls Viewer allows users to see detailed on controls. Open using F6 and expand out to find the information of interest including examples of use.

The Debug/CLI and Code Editor also provide contextual help. Please see those pages on using them for help.
